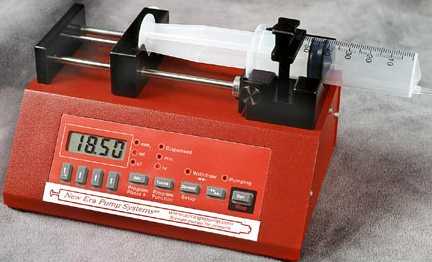

NE-1000 Programmable Syringe Pump

NE-1000 Single Syringe Pump

Model: NE-1000

Price: US $750



Part ID: PUMP-NE1000

Description:


Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump

Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion.

Features:
  • Fully programmable; automation capable
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty


Example Flow Rates (NE-1000):


Syringe Size (cc) Maximum Rate (mL/hr) Minimum Rate (µL/hr)
0.5 µL 25.49 0.001
1 mL 53.09 0.73
3 192.5 2.646
5 406.1 5.581
10 600 8.244
20 975.8 13.41
30 1282 17.63
60 2120 29.13
Need higher flow rates?
Give us a call, we have other
models available
Sample syringe configurations, can hold any size syringes below 60 cc.

Maximum syringe size:

Although a maximum of a 60 cc syringe is specified, the pump can hold up to a 140 cc syringe but can only open up to about 120 cc lengthwise

High pressure notes:

The NE-1000 produces about 15 lbs of linear force at top speed and about 35 lbs at slow speeds. 10 ml/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 ml syringe, this would roughly produce about 30 psi

The high pressure version, NE-1010, will approximately double the pumping force at the same speeds.

NE-1010 High Pressure Variant (Motor Upgrade)


Model: NE-1010

Price: US $830



Part ID: PUMP-NE1010





Example Flow Rates (NE-1010):


Syringe Size (cc) Maximum Rate (mL/hr) Minimum Rate (µL/hr)
0.5 µL 91.83 0.001
1 mL 191.2 1.459
3 693.4 5.291
5 1462 11.17
10 2160 16.49
20 3514 26.82
30 4619 35.25
60 7635 58.26
Need higher flow rates?
Give us a call, we have other
models available
Do you need an upgrade for your Syringe Pump?


Model: FW-1-X

Price: add US $105 to any NE-1000 model
Extra Features: X upgrade is Linear/Gradient flow rate ramping, and additional advanced programming possibilities.


Model: FW-1-X2

Price: add US $205 to any NE-1000 model
Extra Features: X2 upgrade includes all features of the X model plus increases the number of programmable phases from 41 to 340, and increases the max RS-232 baud rate to 38,400




Sample syringe configurations, can hold any size syringes below 60 cc.



*** Not for clinical use on humans ***
