Part ID: SYRINGE-HEATER-KIT

• Heating device for syringes that require temperature-controlled dispensing
• Heats syringe to over 100 degrees Celsius
• Digitally set the heater setpoint
• Setpoint retained in memory
• Controller will heat the syringe and hold the set temperature using an on/off or PID control algorithm
• Multiple syringe heater pads can be attached to the control unit

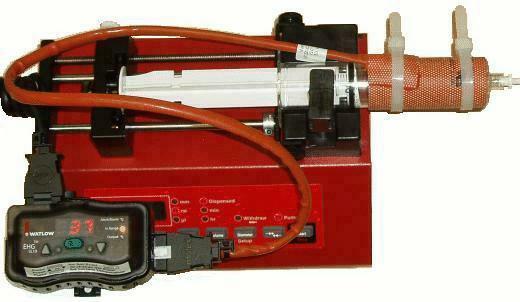

• Heated syringe can be mounted on a syringe pump

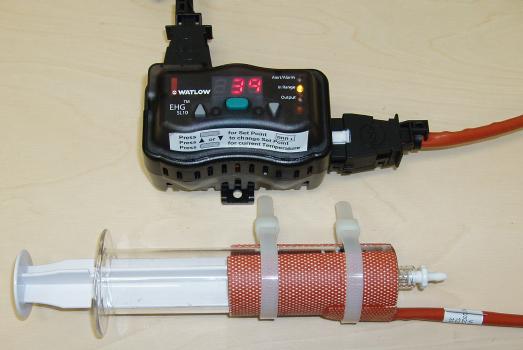

• Syringe Heater Kit includes Control-Unit power cable and Primary-Syringe-Heater-Pad

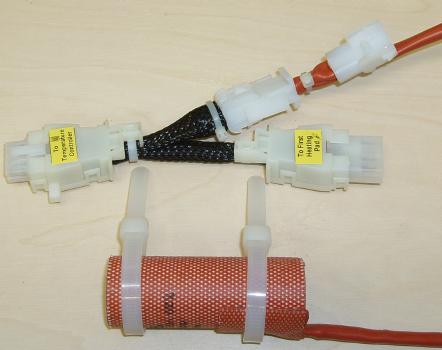

Part ID: SYRINGE-HEATING-PAD2-KIT

• For attaching a second heating pad to Control-Unit
• includes a Y-adapter to connect to primary heating pad

Part ID: SYRINGE-HEATING-PAD3+

• For adding third, up to sixteen, heating pads
• Y-adapter not needed to attach third, and up, heating pads to Control-Unit

• Heater pad measures 75 mm x 75 mm
• Each syringe heater Control-Unit uses only the Primary-Heating-Pad to sense temperature. All Secondary-Heater-Pads connected to that Control-Unit function according to temperature at the Primary-Heater-Pad. For different temperatures or variable environments, use separate Control-Unites with Primary-Heater-Pads.
• Plugging more than 16 Syringe-Heater-Pads onto one Controller is not recommended
