Part ID: PumpRocker-1

Fully automated peristaltic pump & rocker system with programmable timer cycles that allows the unattended operation of filling/draining trays with reagents and/or buffers while providing rocker agitation

• Unattended dispensing and aspiration of liquids to 1 or 2 trays.
• Built-in rocker provides agitation
• Clearing rinse between washes for superior washing.
• Can recover reagent solution.
• Drip proof quick-release connections.
• No vacuum, pressurized air or gas, or additional pumps required.
• Four adjustable Parameters:
• rocking speed (0 to 40 cycles per minute)
• reagent/solution time (1 min to 24 hours)
• wash buffer time (3X 1 min to 4 hrs)
• dispense volume (10 to 1500 ml)
• Can use most anywhere. Only requires an electrical outlet.
• Quiet.
• Compact. Uses less than 10 in. of lab bench. 9.8 in. (25 cm) wide by 13.7 in. (35 cm) deep, including the rocker.
• 9.8 wide by 12 inch deep (25 x 30 cm) rocker platform standard.
  16 in. (41 cm) wide by 15 in. (38 cm) deep platform available.
• Patent pending technology.
• Customization available (e.q. aspirate into particular bottles or carboys, custom platform sizes.).
• Warranty: 2 years.

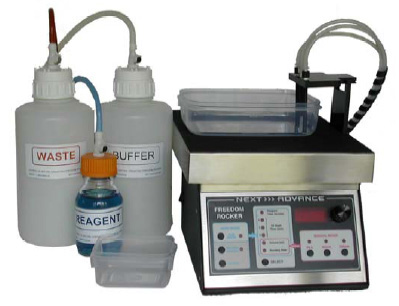

• Freedom Rocker™ instrument and wall plug power supply (specify 115V or 220V).
• Two 2-liter Nalgene® Heavy Duty polyethylene bottles with One>Click™ quick-connect leak-proof caps for Buffer and Waste.
• One 250 ml Pyrex® reagent bottle with One>Click™ quick-connect leak-proof cap.
• Tube Set adaptable for draining to a sink or to a Waste bottle.
• Small Aspiration Head for use with one tray.
• Two trays: one TRAY32 (250ml) and one TRAY35 (900ml).
