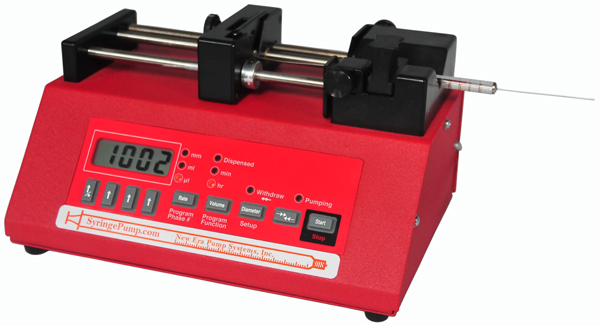

NE-1002X Programmable Microfluidics Syringe Pump

Model: NE-1002X

Suggested List Price: $1525 USD


Description:


Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump

Using two 1000 Series syringe pumps attached with a cable, one pump will infuse while the other pump refills, or have simultaneous infusion.

Features of the 1000 Series of Syringe Pumps:

  • Fully programmable; automation capable
  • Operates stand-alone or from a computer. Cables sold separately.
  • Infusion and withdrawal
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty
Example Flow Rates: NE-1002X
Syringe Size Maximum Rate Minimum Rate
0.5 µL 17.42 nL/min 0.007 nL/hr
1 µL 35.01 nL/min 0.014 nL/hr
2 µL 69.70 nL/min 0.027 nL/hr
5 µL 174.5 nL/min 0.066 nL/hr
10 mL 415.2 µL/min 155.6 nL/hr
20 mL 660.3 µL/min 247.4 nL/hr
30 mL 861.3 µL/min 322.7 nL/hr
60 mL 1400 µL/min 524.7 nL/hr
Sample syringe configurations, can hold any size syringes below 60 mL.
Maximum syringe size: 140 mL, partially filled to about 120 mL.

NE-4002X Programmable 2 Channel
Microfluidics Syringe Pump

Model: NE-4002X

Suggested List Price: $1975 USD


Description:

  • Same description and all the features of the NE-1002X plus...
  • Holds 2 syringes up to 60 mL. 140 mL partially filled.
  • Advance Per Step: 3.899511644 Nanometers
  • See below for example flow rates.
  • Dispensing accuracy of +/- 0.5% and reproducibility of +/- 0.2%
  • Download Brochure
Example Flow Rates: NE-4002X
Syringe Size Maximum Rate Minimum Rate
0.5 µL 17.15 nL/min 0.007 nL/hr
1 µL 34.46 nL/min 0.013 nL/hr
2 µL 68.60 nL/min 0.026 nL/hr
5 µL 171.8 nL/min 0.065 nL/hr
10 mL 408.7 µL/min 153.2 nL/hr
20 mL 649.9 µL/min 243.5 nL/hr
30 mL 847.8 µL/min 317.7 nL/hr
60 mL 1378 µL/min 516.5 nL/hr
Sample syringe configurations, can hold any size syringes below 60 mL.
Maximum syringe size: 140 mL, partially filled to about 120 mL.


Firmware and Program Memory Upgrade Options:


X2 Upgrade

Model: FW-1-X2

Price: add US $230 to any 1000 Series pump model


Extra Features: X2 upgrade includes all features of the X model plus increases the number of programmable phases from 41 to 340.
SyringePumpPro is fully compatible with syringe pumps!
SyringePumpPro Software Take Your Pump Control to the Next Level!
SyringePumpPro helps you get your pumps working for you - fast, so you can get to work on your project.

International Orders
New Era Pump Systems, Inc. product line is supported around the globe by our distribution network. You can order our products from our international distributors. Our syringe pumps are CE certified and we have international power supplies available. Click here for more important details.

Click Here for International Orders

Not For Human Clinical Use
